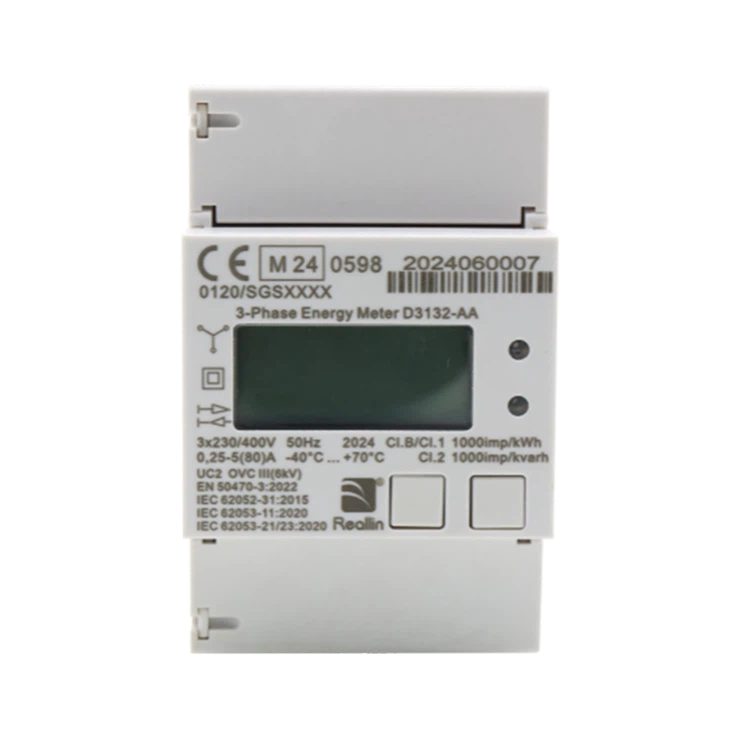

Peb Theem Peb Hlau Din Rail - D3132 Muaj nuj nqi
Siv lub zog ntsuas ntsuas:Tsom rau kev ntsuas raug ntawm lub zog ntawm lub zog hauv Circuities hauv Circuities thiab muab cov neeg siv nrog cov ntaub ntawv siv hluav taws xob muaj tseeb yog ib qho ntawm cov haujlwm tseem ceeb ntawm kev ntsuas hluav taws xob.
Tib Zog Kev: Tsuas yog lub zog ntws los ntawm lub hwj chim sib tshooj rau cov cuab yeej siv hluav taws xob tau raug ntsuas, uas yog tsim rau kev siv hluav taws xob nrog tsau cov zog ntws kev taw qhia.
1TE Dav:"1TE" feem ntau yog hais txog cov chaw teeb tsa nruab nrog cov cuab yeej ntawm lub tsheb ciav hlau, uas tuaj yeem muab tau yooj yim hauv qhov chaw sib xyaw.
Modbus interface:Nruab nrog tus qauv modbus interface, nws tuaj yeem paub cov ntaub ntawv sib kis thiab kev sib txuas lus nrog lwm cov khoom siv ntse lossis cov tshuab.
Siv tau rau AC hluav taws xob lub tsheb them cov chaw nres tsheb thiab txhua yam khoom xa tuaj:Nws tuaj yeem ntsuas qhov kev siv hluav taws xob thaum lub sijhawm them hluav taws xob ntawm cov hluav taws xob.
MID DAIM NTAWV:Muaj ib nrab (ntsuas cov ntaubntawv qhia txog nruab nrab) qhia tias lub meter ua tau raws li cov lus qhia txog kev ntsuas EU ntawm cov twj paj nruag ntsuas.
| Kev qhia tshwj xeeb | D3132 |
| Ntaus | Peb Theem Peb Hlau Din Rail - D3132 |
|---|---|
| tus qauv | EN 50470-3: 2022, IEC 62053-21 / 23: 2020, IEC 62052-31: 2015, Ul61010-2-030 |
| fai fab hov ntau | |
| Ntsuas voltage un | 3x230/400v |
| Muaj ntau ntau | 70% un ~ 140% un |
| niaj hnub | |
| Yam tsawg kawg nkaus imin | 0.25A |
| Siv tam sim no IB | 5A |
| Ntau tshaj plaws Imax | 80A |
| Pib tam sim no ist | 0.4% IB |
| Rated zaus FN | 50HZ |
| Kev ua yog | Chav Kawm B / 1.0 rau Nquag; Chav 2.0 rau reactive |
| Pulsating qhia | Tus coj |
| Pulsating (meter Chatias) | 1000 imp / kWh; 1000 imp / kvarh |
| Huab cua | |
| Qhov ntsuas kub ntau | Kev ua haujlwm: -40-70 degree Cia: -40-85 degree |
| Chaw nres nkoj EDITUR | IP51 hauv Kev Tiv Thaiv Qhov Loj |
| Chav Kawm Rwb Thaiv Tsev | ' |
| Raug power | |
| Circuit Court Circuitive Siv Zog Niam Txiv Lub Zog ATUN | Tsawg dua los yog sib npaug rau 1.5w / 8va |
| Tam sim no Circuit Court pom meej lub zog ntawm ib | <1VA |
| LCD zaub | Dot matrix hom, backlight txaus siab |
| Kev sib txuas lus interface | RS485 chaw nres nkoj, txog li 38400 BPS |
| Luj ntawm lub ntsuas | Txog 0.3kg |
| Qhov loj me (L × w × d) | 90 × 52.5 × 62mm |
Peb Theem Peb Hlau Din Rail - D3132 Chaw tsim tshuaj paus
Yooj yim thiab txuag installation:Nws tau txais tus qauv 35 hli Din Rail txoj kev teeb tsa. Tsis tas yuav tsum lub qhov ntawm phab ntsa kom kho nws. Koj tsuas yog yuav tsum tau Snap lub meter ncaj qha mus rau hauv txoj kev tsheb ciav hlau los ua kom tiav cov kev teeb tsa, uas tau txo qhov nyuaj thiab lub sijhawm ntawm kev ua haujlwm ntawm kev ua haujlwm. Nws tau pom tseeb zoo nyob rau hauv cov haujlwm loj-teev lossis qee zaus uas yuav tsum tau xa tawm sai. Thiab hloov thiab kev txij nkawm kuj tseem tuaj yeem nqa tawm yam tsis muaj kev cuam tshuam lwm yam khoom siv, uas yooj yim thiab nrawm.
Kev ntsuas yog thiab txhim khu kev qha:Siv cov ntsuas ntsuas ntsuas hluav taws xob hauv kev ntsuas hluav taws xob xws li volmeters, tam sim no, muaj zog, thiab ua tiav cov kev ntsuas hluav taws xob hluav taws xob hluav taws xob hluav taws xob hluav taws xob. Nyob rau tib lub sijhawm, lub meter lub peev xwm tiv thaiv kev cuam tshuam nrog hluav taws xob kev cuam tshuam thiab kev ntseeg tau ntawm kev ntsuas hluav taws xob, thiab muab cov ntaub ntawv raug rau kev ntsuas hluav taws xob.
Cov FAQ
Q: Dab tsi yog ib qho peb-theem, peb-tus hlau tsheb ciav hlau lub zog hluav taws xob?
A: Qhov ntsuas siv los ntsuas hluav taws xob hluav taws xob ntawm peb-theem peb-xaim hluav taws xob cov kev thauj khoom, thiab muaj cov yam ntxwv ntawm me me thiab yooj yim installation.
Q: Lub ntsiab lus tseem ceeb ntawm peb-theem peb-hlau tsheb nqaj hlau tsuj?
A: Kev ntsuas ntsuas lub sijhawm ntawm peb-theem dhia / rov qab hluav taws xob, hluav taws xob ntsuas kev soj ntsuam, kev sib txuas lus hauv lub tswb thiab kev tiv thaiv
Q: Kuv yuav ua li cas tau mloog thaum txhim kho peb-theem, peb-hlau tsheb nqaj hlau ntsuas?
A: Paub meej tias lub Circuit Court yog peb-theem peb-xaim system. Qib voltage yuav tsum muaj raws li cov neeg ntsuas ntawm cov ntsuas ntawm lub ntsuas. Txuas lub peb-theem nyob xaim raws li lub davhlau ya nyob cim block. Lub voj qub tam sim no yuav tsum txuas nrog hauv koob nrog tus hloov pauv tam sim no los xyuas kom meej polarity.
