- Lub ntsiab nta
Active/Reactive/pom meej zog ntsuas
Dav ua haujlwm Voltage Range
Anti-Tampering Peev Xwm (Kev kuaj pom qhov txawv txav, cov ntaub ntawv xwm txheej, ntim tau ntim)
Muab Txhua Hnub, Txhua Hli, Load Profiles Thiab THD Tus Nqi Rau Kev Sau Nqi thiab Kev Ntsuam Xyuas
Expandable Nrog Sab Nraud Module Txuas
MID & IEC & High Durability Test Certificate
High Degree ntawm qhov tseeb, Hom (3P3W / 3P4W) yog Configurable
-Specification
Hom

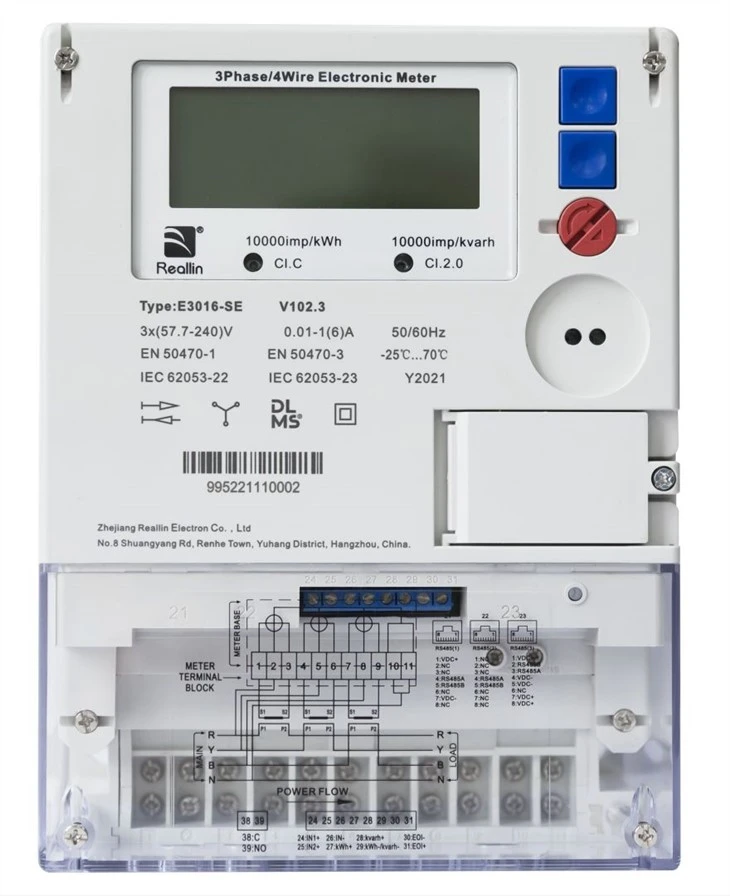

Peb Theem Plaub Hlau CT / CT-VT Ua Haujlwm Meter
Cov qauv
EN 50470-1, EN 50470-3, IEC 62052-11, IEC 62053-22/23,
IEC62056-21, IEC62056-61, IEC62059-32-1
IEC62056-21, IEC62056-61, IEC62059-32-1
Qhov hluav taws xob
Rated voltage Un
Voltage ntau
57.7V~240V
80 feem pua Un ~ 115 feem pua Un
Tam sim no
Yam tsawg kawg tam sim no Imin
Reference Ib
Qhov siab tshaj tam sim no Imax
Pib tam sim no Ist
0.01A
1A, 1.5A lossis 5A
6A los yog 10A
0.1% Ib
Rated Zaus Fn
50/60Hz
Qhov tseeb
Chav Kawm C/{{0}}.5S rau active; Class 2.0 rau reactive
Qhov taw qhia Pulsating
Pulsating (meter tas li)
LED
10000imp/kWh; 10000imp/kWh
10000imp/kWh; 10000imp/kWh
Ib puag ncig
Qhov kub thiab txias
Kev ua haujlwm: -25 ~ 70 degree
Cia: -40 ~ 85 degree
Kev tiv thaiv qib
Tus IP 54
Rwb thaiv tsev Class
II
Hom kev siv fais fab
Voltage circuit active/pom meej zog ntawm Un
Tam sim no circuit apparent power at Ib
2W / 10VA
＜ 1 VA
LCD zaub
8 tus lej nrog qhov chaw decimal configurable, backlight txhawb
Backup Power Supply
Replaceable roj teeb thiab Internal super capacitor
RTC
Muab RTC nrog lub moos raug raws li IEC62054-21
Kev sib txuas lus Interface
2 * RS485 (RJ45 hom) nrog lub zog tso zis 12V (300mA).
1 * RS485 (RJ45 hom) rau RS485 pawg daisy saw.
1 * Optical chaw nres nkoj
1 * RS485 (RJ45 hom) rau RS485 pawg daisy saw.
1 * Optical chaw nres nkoj
Kev sib txuas lus raws tu qauv
DLMS/COSEM
I/O interface
1 * Teeb liab input
2 * Teeb liab tawm
1 * Tswj cov zis
2 * Teeb liab tawm
1 * Tswj cov zis
Qhov hnyav ntawm Meter
Txog 1.8 kg
Dimension (LxWxD)
24.0 × 174.5 × 80.5 hli
