Single Phase Din Rail Smart Energy Meter Chaw tsim tshuaj paus
Nrhiav ib tug txhim khu kev qha Ib Theem DIN Rail Smart Energy Meter Chaw tsim tshuaj paus? Qhia rau peb txog koj qhov voltage, qhov tam sim no, thiab kev xav tau kev sib txuas lus - peb yuav ua raws li tus qauv tsim nyog thiab xa tuaj rau koj sai, cov lus tshaj lij

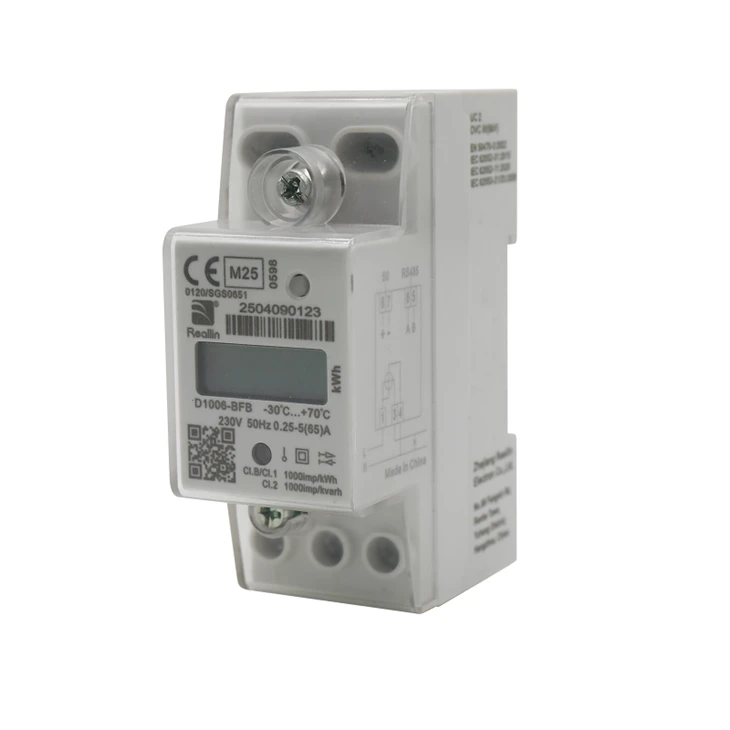

D1006-BF-Main paremeters
| Hom | D1006-BF |
| Cov qauv | EN 50470-3: 2022, IEC 62053-21 / 23: 2020, IEC 62052-11: 2020, IEC 62052-31: 2015, UL61010-1, UL61010-2-030 |
| Qhov hluav taws xob | |
| Rated voltage Un | 230V/240V |
| Voltage ntau | 80% Un ~ 120% Un |
| Tam sim no | |
| Yam tsawg kawg tam sim no Imin | 0.25A |
| Reference Ib | 5A |
| Qhov siab tshaj tam sim no Imax | 65A |
| Pib tam sim no Ist | 0.4% Ib |
| Rated Zaus Fn | 50/60Hz |
| Qhov tseeb | Class B/1.0 rau active; Chav Kawm 2.0 rau reactive |
| Qhov taw qhia Pulsating | LED |
| Pulsating (meter tas li) | 1000imp/kWh; 1000imp/kWh |
| Ib puag ncig | |
| Qhov kub thiab txias | Kev ua haujlwm: -30 ~ 70 degree Cia: -40 ~ 85 degree |
| Kev tiv thaiv qib | IP51 nyob rau hauv kev tiv thaiv enclosure |
| Rwb thaiv tsev Class | II |
| Hom kev siv fais fab | |
| Voltage circuit active/pom meej zog ntawm Un | <1.5W/8VA |
| Tam sim no circuit apparent power at Ib | <1VA |
| LCD zaub | 6+4 tus lej |
| Kev sib txuas lus Interface | RS485 nrog cov ntsia hlau hom, siab tshaj 115200bps |
| Qhov hnyav ntawm Meter | Txog 0.13 kg |
| Dimension (LxWxD) | 90 × 35 × 62mm |
Cov hauv qab no yog cov ntsiab lus hais txog Reallin test Rhiav
Nws puas tuaj yeem txhawb nqa hla- cov haujlwm hauv cheeb tsam siv 50Hz thiab 60Hz?
Yog lawm. D1006-BF txhawb nqa dual zaus ntawm 50 / 60Hz, haum rau cov haujlwm hauv ntau thaj chaw suav nrog Asia, Europe, North America, thiab South America. Tsis xav tau cov qauv ntxiv, txo cov khoom lag luam siab.
Dab tsi ntawm lub thawv xa khoom lossis DIN rail system yog qhov ntsuas no haum rau?
Nws ntsuas 90 × 35 × 62mm thiab haum tus qauv 35mm DIN ntsia. Tsuas yog lub thawv xa khoom yuav tsum muaj IP51 lossis siab dua tiv thaiv kev ntsuas; tsis tas yuav muaj chaw ntxiv lossis cov cuab yeej siv.
Dab tsi yog qhov siab tshaj plaws RS485 kev sib txuas lus ceev? Nws puas haum rau kev xaiv tsa sai?
Kev sib txuas lus sib txuas txhawb nqa qhov siab tshaj plaws ntawm 115200bps, haum rau:
High -frequency meter reading systems
Kev txawj ntse siv zog saib xyuas platforms
Ntau -node ceev scanning tej yaam num
Tsis muaj cov ntaub ntawv congestion lossis qeeb yuav tshwm sim.
Puas yog qhov pib tam sim no thiab yam tsawg kawg nkaus ntsuas tam sim no haum rau kev saib xyuas kev siv hluav taws xob?
Nws tuaj yeem raug pib los ntawm 0.4% Ib, nrog qhov ntsuas qhov tsawg kawg nkaus ntawm 0.25A, ua rau nws zoo tagnrho rau:
PV kab hluav taws xob- txuas nrog saib xyuas
Me me load zog noj cov txheeb cais
Zog-txuag kev kho dua tshiab
Nws kuj tseem tuaj yeem kaw lub teeb / micro- thauj cov ntaub ntawv kom raug.
Yog tias ib qhov project muaj qhov xav tau siab rau qhov kub thiab txias, qhov ntsuas no puas tuaj yeem ua tau raws li lawv?
Yog lawm. Nws txhawb:
Ua haujlwm kub -30℃~ +70 degree
Cia kub -40℃~ +85℃. Haum rau ib puag ncig nrog dampness, plua plav, qhov kub thiab txias sib txawv, qhov dej hluav taws xob, cov ntaub thaiv sab nraum zoov, lossis cov chaw tsim khoom; nws tsis yooj yim rau drift los yog laus.
